Here are two versions of the canopy - Early and Late Versionen - for the Fw 190D-9 in 1/32 scale.

Have fun building!
Harry

Hallo,

hier ist ein Video zum abkleben von Flugzeugkanzeln.
Hier habe ich einmal verschiedene Dreiecke erstellt, 5mm + 7mm und 10mm + 14mm.
Länge Horizontal + Vertikal = 5mm bzw. 10mm,
Länge Diagonal: = 7mm bzw. 14mm.

Viel Spaß beim verwenden!
Harry


Hallo,
hier ist eine Canopy-Mask für eine P-47D Thunderbolt  für Hobby Boss - Kit.
Die Maske kann auch für andere Hersteller verwendet werden, eventuell ist eine leichte Anpassung nötig


Maßstab: 1/48

Viel Spaß beim verwenden!
Harry

This file has options for both the single and two seat canopies used on the kit, as well as a couple of other useful extras. See the attached image for which parts to use.

Cheers!
Hoops

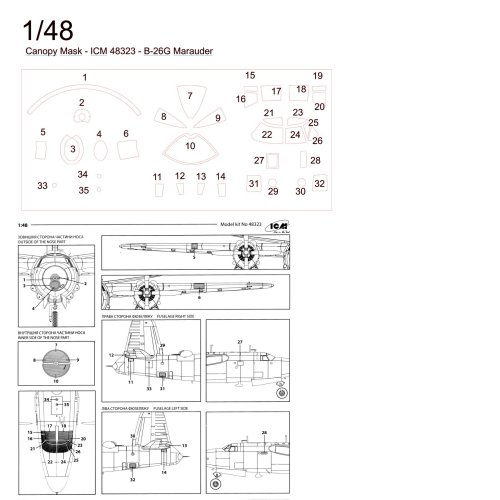

Canopy Mask - ICM 48323 - 1/48 - B-26G Marauder

Layer 1 = Masken
Layer 2 = Beschriftung

Maßstab: 1/48

Viel Spaß beim bauen!
Harry

Also included are masks for the taxi lights on the nose landing gear, the landing light on the port wing root, the mid canopy windscreen under the canopy, and the non skid areas on the fuselage next to the cockpit.

Cheers!
Hoops

These two masks are for the Revell 1/72 Handley Page Halifax B Mk.I/II, GR.II. (kit number 04394)
(may not be entirely accurate, BUT close enough for my tired old eyes...)

I'm not too sure that I'll do any Turret masks for this kit as it will be a lot quicker just to cut out the masks using Tamiya Tape and a sharp exacto knife...

FockeWulf FW190 A8/R2

Schnittmuster wurden vom Original-Masking-Sheet nachgezeichnet und passen sehr gut.
Da ich Neuling auf diesem Gebiet bin, möge man mir Fehler verzeihen.

Beim ersten Versuch hat das Schneideprogramm Doppel-Linen gezeichnet und der Plotter hat dann 13 Minuten gebraucht zum plotten. 😞
Beim zweiten Versuch ist jetzt alles richtig. 🙂

Viel Spass beim bauen des Modells!
Harry


Canopy masking for the two versions of the Me 410 by Airfix. Extra clear parts are on the clear parts tree but not designated in the instructions.
Feedback always appreciated.

Craig

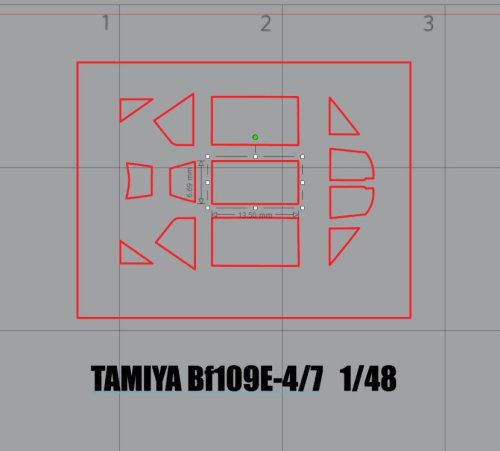

Canopy masks for Tamiya Bf109 E-4/7, kit #61063. Appreciate any feedback.

Canopy plus wheel/spares and Air Refueling masks for new (Sep 2023) FineMolds 1/72 F-15J (and other single seaters to be released (A, C, ...). I'll post two seater masks after kits are released (Dec 2023).

This weekend I'll also post masks for metal aft fuselage areas, including Turkey Feather nozzles.

Gene K



SVG  file for folks using other other than Silhouette cutters, or who want to trace/cut manually.

Gene K

Canopy masks, inside and out for the Hawker Hunter.  The masks were produced specifically for the Echelon Vac form kit, comparisons with the Revell Hunter show that the latter canopy is slightly wider than the Echelon so if used, these masks may need a bit of tweaking.

Masks as described, outer test fitted and accurate, inner ones are a reduced version of the outer but not test fitted.....over to you. 😄

Drawn in 1/48 scale for the new Airfix kit, inside and outside masks.
Max

Complements the late upright version.

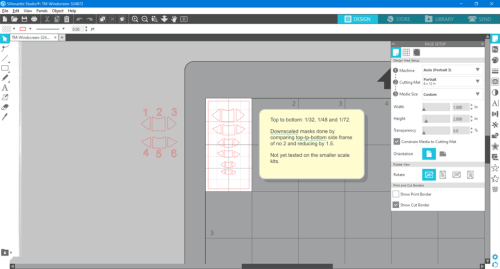

I've been working on a pair of ICM Tiger Moths, and in common with many ICM kits, there is a mask template in the instructions which was easily used to produce these masks.  I thought that as we have recent kits of this from Airfix in both 1/48 and 1/72, I'd include these by downscaling the 1/32 masks as detailed in a note on the file.  There is also a separate set of drawings off the cutting area: these are there as an indicator of which mask is which, they correspond to the ICM instructions, thus they are not guaranteed to be the same size as the final masks on the cutting area.

I am in the process of masking up the ICM windscreens, and the fit is OK so far.  I have not yet tried the smaller masks on a kit.  I have a pair of 48th examples in the stash, and will update the file if necessary when I've built them.  If you try the smaller-scale masks, please PM me with any feedback, particularly if the sizes are significantly incorrect.

Thank you.

After a little nudge from Mike C., I've tweaked my rather indifferent first attempts at canopy masks for the Fisher Hunter T7.  It's not an easy mask designing project due a) to the shape of the canopies b) the not too good definition on my canopy between glass and metal framing and c) a slight inconsistency in size for the canopy sections ie left and right of the main canopy and matching sections of the front.  So using these masks comes with a caveat:  they fit well but not perfectly so on the front ones especially you will need a fresh blade in your scalpel to make small adjustments!  Nonetheless, I hope they are useful to those fortunate to have this Fisher conversion.
Max

Cheers!
Hoops

The small ring masks are to go around the brakes on the inside of the main wheels, then apply a complete disk over the top to complete the masking job.

The large circle is for the compressor face.

Cheers,
Hoops

Uploading in the canopy mask in .svg Format

Cheers,
Hoops

Canopy Masks for the front canopy designed or Pilot Replicas J 29 Tunnan in 1/48 scale.
Studio 3 masks.

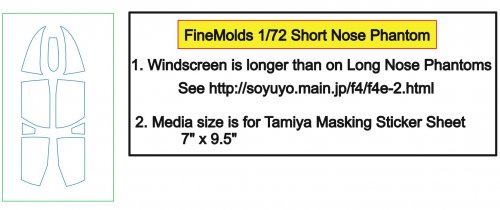

Fine Molds currently produces 1/72 long nose (F-4E, F-4EJ, RF-4EJ) as well as short nose (F-4C, F-4J) Phantom kits (with hopefully more variants coming). As concerns canopies, the short nose variants have a longer windscreen as illustrated here , and FineMolds have commendably noted and molded separate clear sprues.

I have previously posted FM long nose masks here.

I have added an SVG file for use in other cutters such as the Cricut ... or to cut manually.

Silhouette Studio Canopy Masks for ALL 1/72 Hasegawa "new" Phantom kits released in 1990 and after. Hasegawa does not differentiate between long nose or short nose windscreens as do the new FineMolds kits (the long nose Phantoms have shorter windscreens than the short nose Phantoms).

An SVG file is included for use with other cutters like the Cricut ... or for manual cutting.

Gene K

Canopy Masks for the 1/72 FineMolds Long Nose Phantoms (F-4E, F-4EJ, et al). Cut settings on my Cameo 4 using Oramask 810 are: Depth 2, Force 13, Passes 1, Speed 5; and for the cut-through-the-backing border are: Depth 5, Force 15, Passes 2, Speed 5.

The FineMolds kits are the best 1/72 Phantoms on the market.

Gene K
